Quality control procedure

Raw material Mill certificate re-check and approval, including:

· Steel materials

· Welding rods and welding wires

· Bolts

· Painting

Steel materials Tensile test and dimension measurement approval

When the steel materials arrive factory, we apply dimension measurement and tensile test by our in-house QC persons.

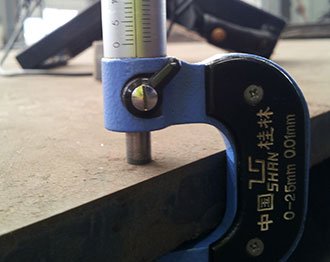

Micrometer

Micrometer

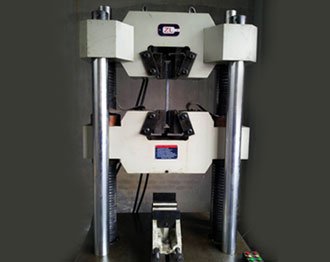

Universal detector

Universal detector

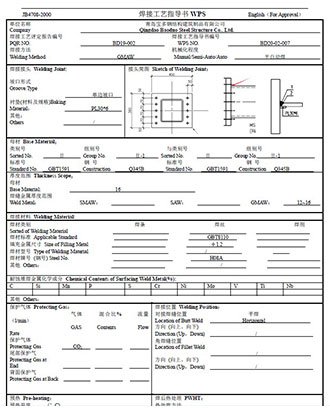

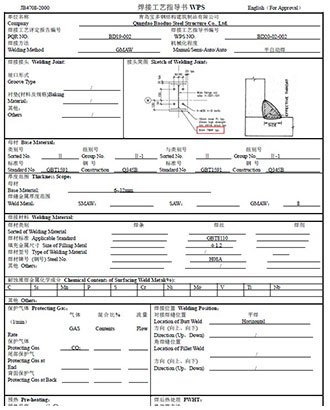

WPS approval before fabrication

quality-3
quality-4

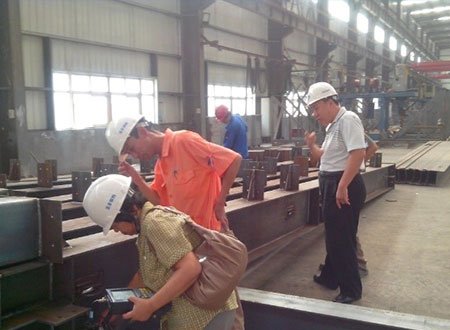

Quality control progress during fabrication

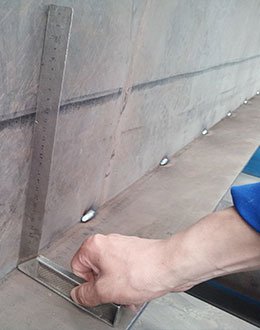

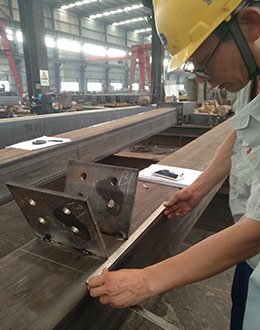

Verticality check

Verticality check

Spot weld dimension check

Spot weld dimension check

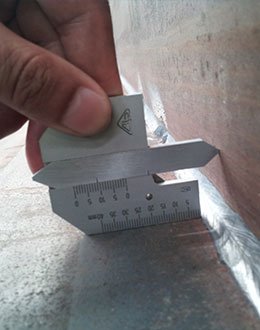

Butt weld width check

Butt weld width check

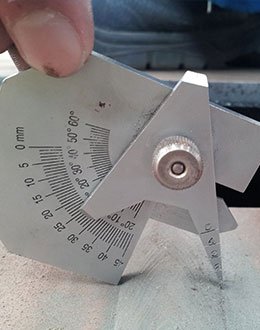

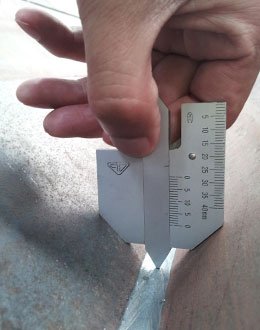

Fillet weld foot height check

Fillet weld foot height check

Fillet weld effective throat check

Fillet weld effective throat check

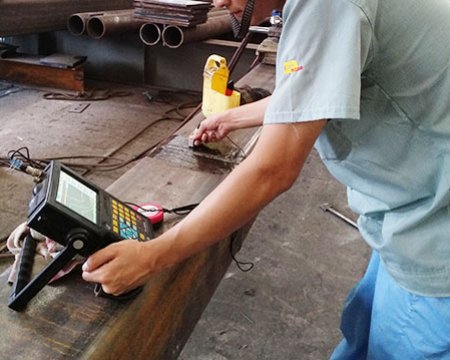

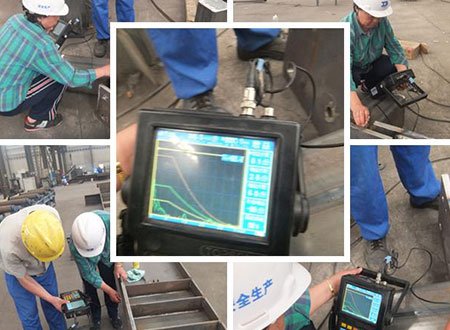

Weld quality inspection

We perform non-destructive testing (NDT) in accordance with contract documents and applicable welding codes. As part of this process, we ensure that all inspections, test plans and quality manuals are fully documented and maintained.

quality-10
quality-11

Quality control progress during fabrication

quality-12
quality-13
quality-14

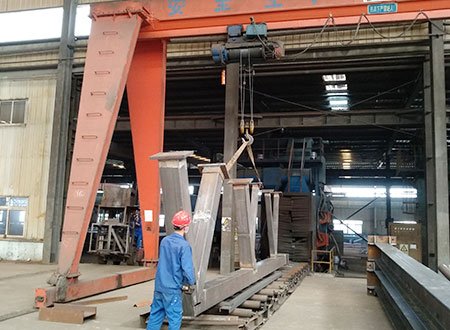

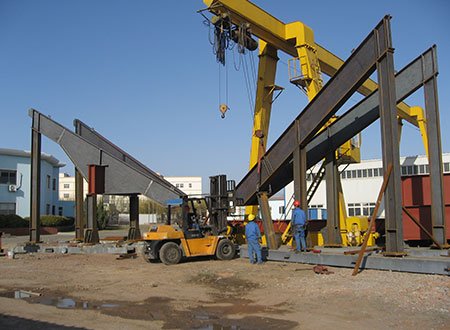

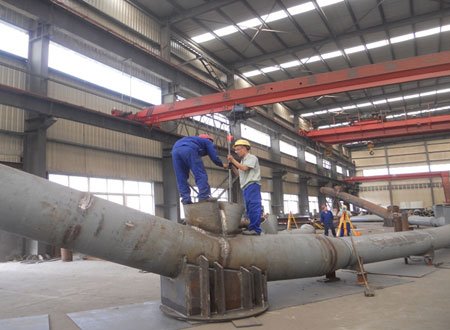

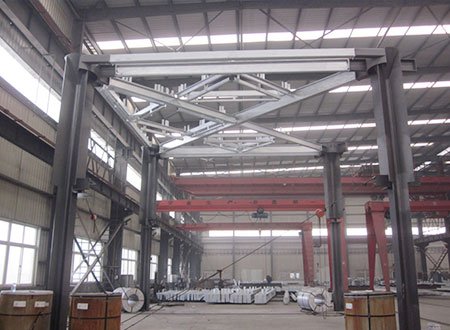

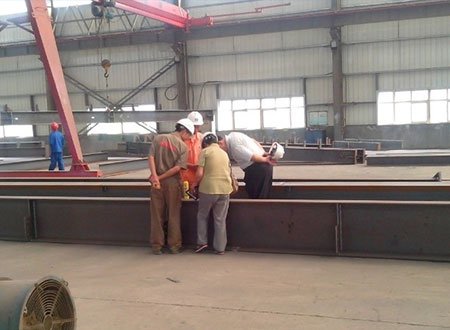

Pre-assembly is applied to special shape structure or as per client’s requirement.

quality-15
quality-16
quality-17

Anti-corrosion system quality control

Apply ball blasting on primary steel structure components to make sure the surface reach to Sa 2.5 grade.

Apply ball blasting on primary steel structure components to make sure the surface reach to Sa 2.5 grade.

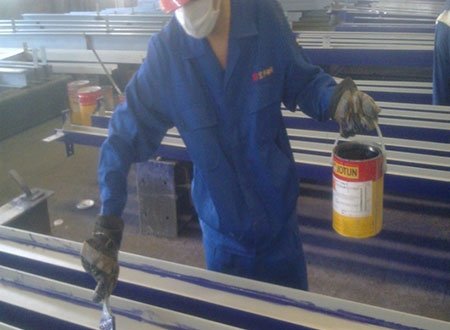

Pre-coating as required

Pre-coating as required

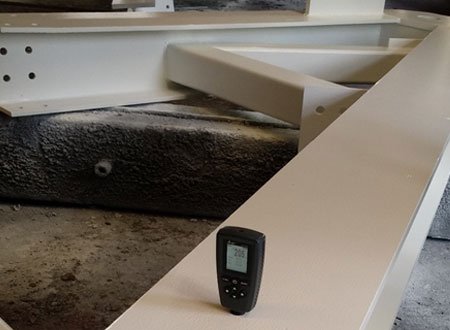

Painting dry film thickness check

Painting dry film thickness check
